Renewable Energy
MOOJIN infinite challenge, Creating a better industry
  • Existing Bio-diesel

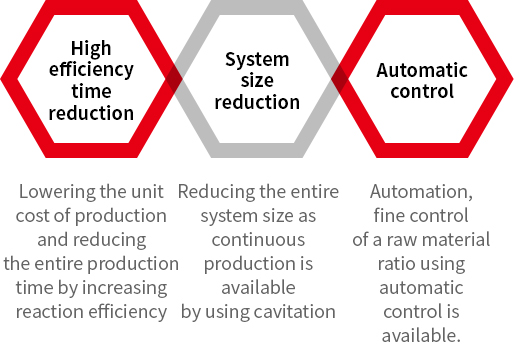

  • New Method Bio-diesel
  • New Method Production System

Existing Bio-diesel

  • - Process time delay due to continuous batches
  • - Mass production is possible but facility costs increase
  • - Mass production is possible but facility cost increases
  • - Operation conditions must be properly maintained
Distinction Batch Type (Existing Technology) Continuous Pipe Type (Existing Technology) Cavitation (Developed Technology)
Main Equipment Large Stirring Tank Reactor Pipe-type Reactor Cavitation Reactor
Mixing Method Fluid Turbulence Fluid Turbulence Fluid Cavitation
Time Required for Reaction 8 hrs Continuous Continuous
Reactor Size 50/38 (Output) Large Plant 2.0 x 1.0 x 1.5
Initial Cost Low Very High Low
Output per hour[m³] 4.75 2.0
Reaction Temperature [℃] 65-75 45-50
Energy Consumed [kWh] 2,400 250
Number of Operators [person] 2 2 1
Unit Cost of Production (excluding raw materials) 310,000 won 273,000 won
Advantage Easy to maintain quality Continuous production available Continuous production available

Cavitation?

Cavitation is a phenomenon where rapid changes of pressure in a liquid lead to the formation of small vapor-filled cavities, in places where the pressure is relatively low.

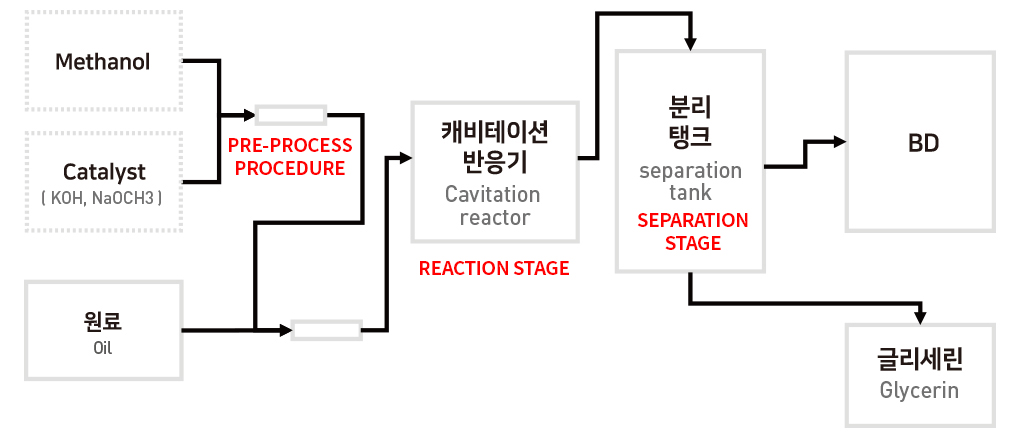

Producing bio-diesel using cavitation
Model Number High pressure
Capacity 3ton / 1hour
Electrical AC 220-380V, 60Hz
Power rate 50KW
Steel grade SUS304
Dimension 3m × 2m × 2m
